60V, 3.0A, 150kHz, STEP-DOWN SWITCHING REGULATOR

         FEATURES

        - 3.3V, 5V, 12V and Adjustable output versions

- Adjustable version output voltage range, 1.23V to 57V

- ±4% max over line and load condition

- Available in TO-220, TO-263 and SOP-8PP

- Guaranteed 3A output load current

- Input voltage range up to 60V

- Requires only 4 external components

- Excellent line and load regulation specifications

- 150kHz fixed frequency internal oscillator

- Low power standby mode, ISTB typically 30uA

- High efficiency

- Thermal shutdown and current limit protection

- Output short protection by reduction of frequency by 3 times

         DESCRIPTION

       The LM2596HV series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.

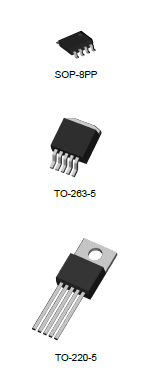

Available in a standard 5-lead TO-220 package and a 5-lead TO-263 surface mount package.

External shutdown is included, featuring typically 30 µA standby current. The output switch includes cycle-bycycle current limiting, as well as thermal shutdown, and protection from output short for full protection under fault conditions.
