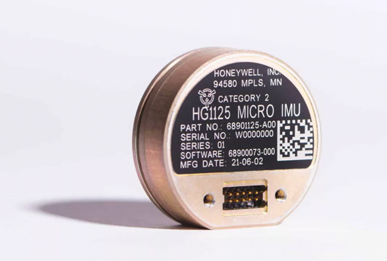

HG1125/HG1126

Inertial Measurement Unit

PROVEN. DEPENDABLE. ACCURATE.

The HG1125/HG1126 is a micro-electro-mechanical system (MEMS) based inertial measurement unit (IMU) designed to meet the needs of a range of applications across various markets. This IMU is designed for harsh environments that require rugged inertial performance in a small form factor. Applications include drilling, military projectiles, munitions, interceptor platforms, unmanned aerial vehicles and commercial avionics.

With an industry-standard communication interface, the HG1125/HG1126 is easily integrated into the variety of architectures. The extremely small size, lightweight, and low power make the HG1125/HG1126 ideal for these applications. The HG1125/HG1126 includes MEMS gyroscopes, accelerometers and magnetometers. Internal isolation and other proprietary design features ensure the HG1125HG1126 is rugged enough to meet the needs of the most demanding users.

Three different performance grades of the HG1125/HG1126 are available

off-the-shelf. The HG1125/HG1126 also offers an array of configurable features to

simplify system integration. The HG1125/HG1126 are not ITAR controlled. HG1125

Export Control Classification Number (ECCN) is 7A994. The HG1126 Export Control

Classification Number (ECCN) is 7A003.d.1.

KEY ADVANTAGES

• World-class inertial product

development, calibration

and compensation.

• Proven reliability, dependability

and ruggedness.

• High G capable to 40kG.

• LVDS asynchronous

standard protocols.

• Highest-performing MEMS

IMU of its size and price.

• Quick start evaluation

kit available.3
