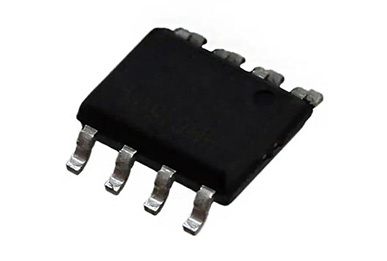

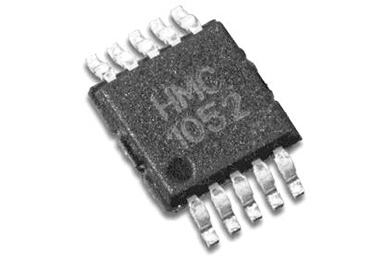

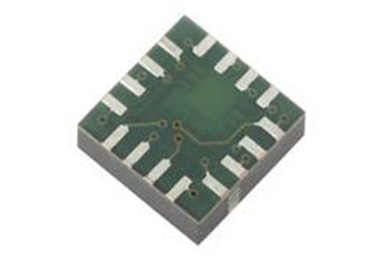

The Honeywell HMC1051, HMC1052 and HMC1053 are magnetoresistive sensors designed for low field magnetic sensing. Various packaging options have been created from the basic HMC1052 sensor chip to create 1, 2 and 3-axis magneto-resistive sensors for cost effective and small size solutions. The advantage of the HMC105X family of sensors is in the near-perfectly orthogonal dual sensor on a single chip with shared set/reset and offset coils/straps included.

FEATURES 

•Miniature Surface-Mount Packages

• Leaded and Leadless Packages 

• Low Voltage Operations (1.8V) 

•Low Cost 

•Tape & Reel Packaging Options 

•4-Element Wheatstone Bridge 

•Wide Magnetic Field Range (+/-6 Oe) 

•Patented Offset and Set/Reset Straps 

BENEFITS

•Small Sizes for Compact Applications

•Compatible with High Speed SMT Assembly and Prototyping

•Compatible for Battery Powered Applications

•Designed for High Volume, Cost Effective OEM Designs

•High Volume OEM Assembly

•Low Noise Passive Element Design

•Sensor Can Be Used in Strong Magnetic Field Environments

•Stray Magnetic Field Compensation
